Cabeças de sensor de fibra resistentes a químicos

As fibras resistentes a químicos proporcionam uma durabilidade prolongada dos sensores em áreas com limpeza frequente, utilização de químicos ou temperaturas elevadas.

Cobertura de fluoro-plástico para máxima resistência a químicos
Resistência a temperaturas até 200°C

Highest chemical resistance

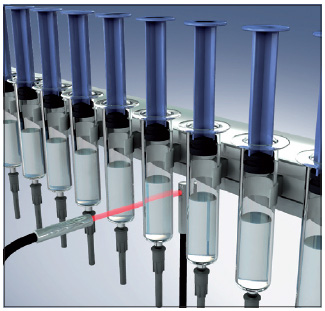

O revestimento em fluororesina proporciona uma resistência química elevada para uma vida útil mais prolongada em ambientes limpos frequentemente, como locais de enchimento asséptico em aplicações farmacêuticas.

Heat resistance

Modelos resistentes ao calor melhorados.

Especificações e info encomendas

Ordering information

Sensor type	Size	Sensing distance (in mm)1		Key feature	Order code
Sensor type	Size	E3X-HD	E3NX-FA	Key feature	Order code
	M4	1350	2000	Fluororesin coating	E32-T11U 2M
	dia 5 mm	4000	4000	Fluororesin cover	E32-T12F
	dia 5 mm	800	1200	Fluororesin cover	E32-T14F 2M
	M6	350	520	Fluororesin coating	E32-D11U 2M
	dia 7 mm	300	450	Fluororesin cover	E32-ED11F 2M
	dia 6 mm	190	280		E32-D12F
		80	120		E32-D14F 2M
		1400	2100	Fluororesin cover Heat resistant to 200°C	E32-T81F-S 2M
	dia 5 mm	2800	4000	Fluororesin cover Heat resistant to 150°C	E32-T51F 2M

Specifications

Item		Fluororesin coating		Full fluororesin cover		Full fluororesin cover and heat resistance
Item		E32-T11U	E32-D11U	E32-ED11F	E32-_12F/E32-_14F	E32-T51F	E32-T81F-S
Permissible bending radius (in mm)		R1	R4	R75	R40		R10
Cut to length		yes					no
Ambient temperature		-40°C to 70°C				-40°C to 150°C	-40°C to 200°C
Material	Head	Brass-nickel plated		Fluororesin
	Fiber	PMMA					Glass
	Sheath	Fluororesin coating		Fluororesin cover
Degree of protection		IEC60529 IP67

1. Sensing distance measured in Standard Mode

Ordering information

Sensor type	Size	Sensing distance (in mm)1		Key feature	Order code
Sensor type	Size	E3X-HD	E3NX-FA	Key feature	Order code
	M4	1350	2000	Fluororesin coating	E32-T11U 2M
	dia 5 mm	4000	4000	Fluororesin cover	E32-T12F
	dia 5 mm	800	1200	Fluororesin cover	E32-T14F 2M
	M6	350	520	Fluororesin coating	E32-D11U 2M
	dia 7 mm	300	450	Fluororesin cover	E32-ED11F 2M
	dia 6 mm	190	280		E32-D12F
		80	120		E32-D14F 2M
		1400	2100	Fluororesin cover Heat resistant to 200°C	E32-T81F-S 2M
	dia 5 mm	2800	4000	Fluororesin cover Heat resistant to 150°C	E32-T51F 2M

Specifications

Item		Fluororesin coating		Full fluororesin cover		Full fluororesin cover and heat resistance
Item		E32-T11U	E32-D11U	E32-ED11F	E32-_12F/E32-_14F	E32-T51F	E32-T81F-S
Permissible bending radius (in mm)		R1	R4	R75	R40		R10
Cut to length		yes					no
Ambient temperature		-40°C to 70°C				-40°C to 150°C	-40°C to 200°C
Material	Head	Brass-nickel plated		Fluororesin
	Fiber	PMMA					Glass
	Sheath	Fluororesin coating		Fluororesin cover
Degree of protection		IEC60529 IP67

1. Sensing distance measured in Standard Mode

Acessórios

Accessories

Type	Comment	Order code
Focal lens	- Extends sensing distance by more than 500% - For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread) - 2 pcs per set	E39-F1


Focal lens (side view)	- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11, E32-T61-S, E32-T81R-S (fits M2.6 thread) - Temperature range -40 to 200°C - 2 pcs per set	E39-F2


Focal lens (variable)	- For precision detection with E32-D32	E39-F3A
Focal lens	- For precision detection with E32-EC41	E39-F3A-5
	- For precision detection with E32-EC41	E39-F3B
	- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)	E39-F18
Focal lens (side view, variable)	- For precision detection with E32-EC31	E39-EF51
Focal lens (heat resistant)	- Extends sensing distance by more than 500% - For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S, E32-T81R, E32-T81R-S (fits M4 thread) - Temperature range -60 to 350°C - 2 pcs per set	E39-EF1-37-2



		E39-F16
Focal lens (vacuum resistant, heat resistant)	- Fits E32-T51V and E32-T54V (fits M2.6 thread) - 2 units per set - Heat resistant up to 120°C	E39-F1V


Fiber cutter	- Included in applicable fiber	E39-F4
Thin fiber attachment	- Amplifier adapter for thin fibers - Included in applicable fiber (2 sets)	E39-F9
Thin fiber attachment		E39-F9
Sleeve bender	- For E32-TC200B(4) - For E32-TC200F(4) - For E32-DC200F(4)	E39-F11


Single fiber extension connector	- Fiber extension connector for 2.2 mm dia standard fibers - One unit	E39-F10
Single fiber extension connector		E39-F10
Dual fiber extension connector	- For fibers with dia 2.2	E39-F13
	- For fiber with dia 1.0	E39-F14
	- For fibers with dia between 1.0 and 2.2	E39-F15

Protective spiral tube 1	- For M3 diffuse type sensors - Length 1 m	E39-F32A
	- For M3 diffuse type sensors - Length 1 m	E39-F32A
	- For M3 through beam type sensors - Length 1 m	E39-F32B
	- For M3 through beam type sensors - Length 1 m	E39-F32B
	- For M4 through beam type sensors - Length 1 m	E39-F32C
	- For M4 through beam type sensors - Length 1 m	E39-F32C
	- For M6 diffuse type sensors - Length 1 m	E39-F32D
	- For M6 diffuse type sensors - Length 1 m	E39-F32D

Fiber on roll 2	- Dia 2.2 mm - Standard monocore, 10 mm bending radius - -40 to 80°C	E32-E01 100M


	- Dia 1.1 mm - Standard monocore, 15 mm bending radius - -40 to 80°C	E32-E02 100M


	- Dia 2.2 mm - High flex multicore, 1 mm bending radius - -40 to 80°C	E32-E01R 100M


	- Dia 1.1 mm - High flex multicore, 1 mm bending radius - -40 to 80°C	E32-E02R 100M


	- Dia 2.2 mm - High temperature monocore, 20 mm bending radius - -60 to 150°C	E32-E05 100M

1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

Accessories

Type	Comment	Order code
Focal lens	- Extends sensing distance by more than 500% - For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread) - 2 pcs per set	E39-F1


Focal lens (side view)	- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11, E32-T61-S, E32-T81R-S (fits M2.6 thread) - Temperature range -40 to 200°C - 2 pcs per set	E39-F2


Focal lens (variable)	- For precision detection with E32-D32	E39-F3A
Focal lens	- For precision detection with E32-EC41	E39-F3A-5
	- For precision detection with E32-EC41	E39-F3B
	- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)	E39-F18
Focal lens (side view, variable)	- For precision detection with E32-EC31	E39-EF51
Focal lens (heat resistant)	- Extends sensing distance by more than 500% - For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S, E32-T81R, E32-T81R-S (fits M4 thread) - Temperature range -60 to 350°C - 2 pcs per set	E39-EF1-37-2



		E39-F16
Focal lens (vacuum resistant, heat resistant)	- Fits E32-T51V and E32-T54V (fits M2.6 thread) - 2 units per set - Heat resistant up to 120°C	E39-F1V


Fiber cutter	- Included in applicable fiber	E39-F4
Thin fiber attachment	- Amplifier adapter for thin fibers - Included in applicable fiber (2 sets)	E39-F9
Thin fiber attachment		E39-F9
Sleeve bender	- For E32-TC200B(4) - For E32-TC200F(4) - For E32-DC200F(4)	E39-F11


Single fiber extension connector	- Fiber extension connector for 2.2 mm dia standard fibers - One unit	E39-F10
Single fiber extension connector		E39-F10
Dual fiber extension connector	- For fibers with dia 2.2	E39-F13
	- For fiber with dia 1.0	E39-F14
	- For fibers with dia between 1.0 and 2.2	E39-F15

Protective spiral tube 1	- For M3 diffuse type sensors - Length 1 m	E39-F32A
	- For M3 diffuse type sensors - Length 1 m	E39-F32A
	- For M3 through beam type sensors - Length 1 m	E39-F32B
	- For M3 through beam type sensors - Length 1 m	E39-F32B
	- For M4 through beam type sensors - Length 1 m	E39-F32C
	- For M4 through beam type sensors - Length 1 m	E39-F32C
	- For M6 diffuse type sensors - Length 1 m	E39-F32D
	- For M6 diffuse type sensors - Length 1 m	E39-F32D

Fiber on roll 2	- Dia 2.2 mm - Standard monocore, 10 mm bending radius - -40 to 80°C	E32-E01 100M


	- Dia 1.1 mm - Standard monocore, 15 mm bending radius - -40 to 80°C	E32-E02 100M


	- Dia 2.2 mm - High flex multicore, 1 mm bending radius - -40 to 80°C	E32-E01R 100M


	- Dia 1.1 mm - High flex multicore, 1 mm bending radius - -40 to 80°C	E32-E02R 100M


	- Dia 2.2 mm - High temperature monocore, 20 mm bending radius - -60 to 150°C	E32-E05 100M

1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length
